Endmill with exchangeable heads for reduced tool change time

Choose the best head-shank combination for your endmilling operation
Minimize setup time while maximizing your productivity

Applications & Features

Shoulder millingShoulder milling RSlottingSlotting RPocketingRampingProfilingPlungingSide slottingHole enlargingFace milling

1. Reduces tool changeover times drastically

• Enables users to only change cutting head, simplifying set-ups.

2. Highly accurate repeatability

• Accuracy can be maintained by touching the taper and face.

Heads & Grades

Inserts

Solid heads for milling

Solid heads for thread milling

Grades

AH725

  • Good balance between wear and chipping resistance
  • Suitable for machining steel and stainless steel under general cutting conditions

AH715

  • Nano-multilayered coating
  • Excellent longer tool life than existing grade

GH130

  • High chipping and fracture resistance
  • Suitable for steel, stainless steel, and cast iron

Tools

Shank Type

Shanks and adapters

Practical examples

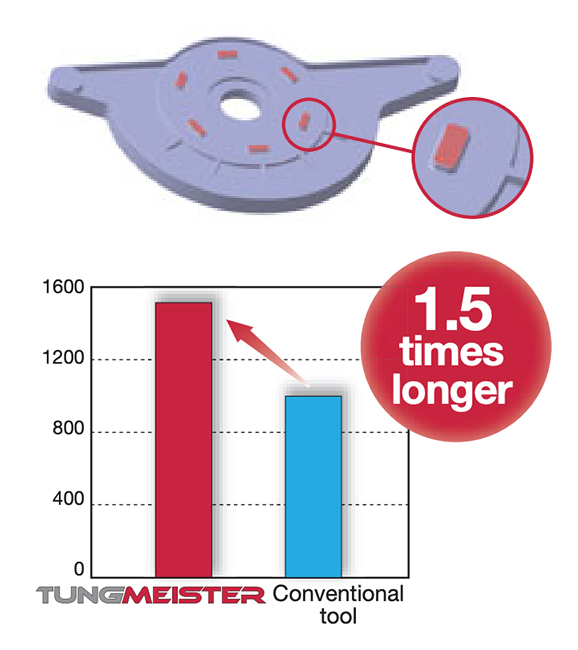

Part: Cover
Material: FC250
Shank: VSSD16L100S10-S (Steel, ø16)
Head: VED160L12.0R05-04S10 (ø16)
Grade: AH715
Cutting conditions: Vc = 250 (m/min)
fz = 0.12 (mm/t)
ap = 1 (mm)
ae = 10 (mm)
Coolant: Dry

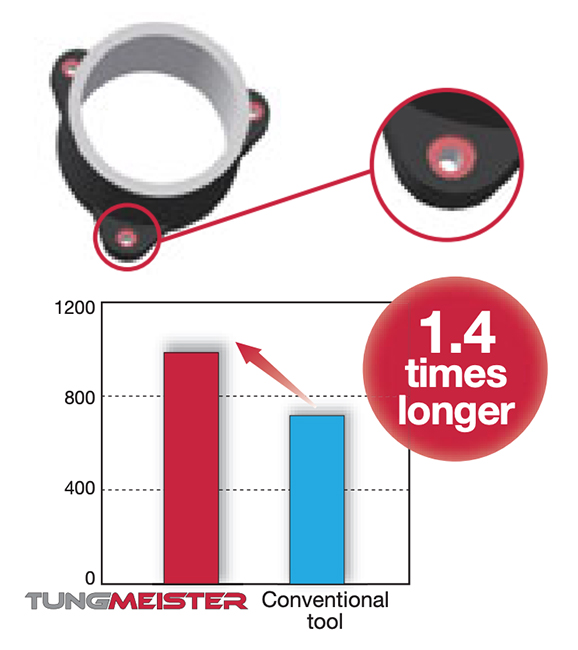

Part: Bolt sheat
Material: FCD400
Shank: VSSD16L100S10-S (Steel, ø16)
Head: VED160L12.0C60I04S10 (ø16)
Grade: AH715
Cutting conditions: Vc = 60 (m/min)
fz = 0.08 (mm/t)
ap = 2 (mm)
ae = 16 (mm)
Coolant: Wet

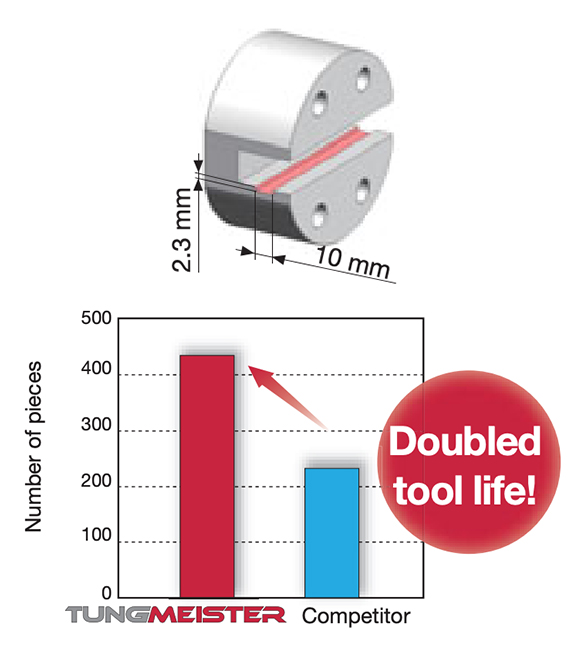

Part: Machine parts
Material: Alloy steels SCM440 (42CrMo4)
Shank: VSTD10L080S06-S (Steel, ø10)
Head: VTB160W4.00R04-06S06 (ø16)
Grade: GH130
Cutting conditions: Vc = 110 (m/min)
fz = 0.07 (mm/t)
ap = 2.3 (mm)
ae = 4 + 4 + 2 (mm)
Coolant: Dry

Standard cutting conditions

Shoulder milling (VEH, VEE: 3 flutes, VED/VEE: 4 flutes, VEE-A, VEE-I, VEE-R, VEE-C, VRB, VRC, VRD)
ISO Workpiece material Hard- ness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm) Pick feed Pf (mm)
Tool diameter: DC (mm)
6 8 10 12 16 20 25
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 80 – 180 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 60 – 140 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 60 – 120 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 40 – 100 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 80 – 200 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 80 – 200 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x Dc 0.25 x øDc
Aluminium alloys Si < 13% 200 – 700 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Aluminium alloys Si ≥13% 100 – 300 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.25 x øDc
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.05 x øDc
Heat-resistant alloys Inconel 718, etc. 20 – 40 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.10 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.05 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 40 – 80 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.05 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x 0.6 x øDc 0.05 x øDc
Shoulder milling (VED / VEE: 6 flutes, VED / VEE: 8, 10 flutes)
ISO Workpiece material Hard- ness Cutting peed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm) Pick feed Pf (mm)
Tool diameter: DC (mm)
8 10 12 16 20 25
Titanium alloys Ti-6Al-4V, etc. 60 – 120 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x øDc 0.02 x øDc
Heat-resistant alloys Inconel 718, etc. 30 – 60 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x øDc 0.02 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 80 – 160 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x øDc 0.02 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 40 – 90 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.1 – 0.17 0.6 x øDc 0.02 x øDc
Shoulder milling (VEH: long flute, VFM)
ISO Workpiece material Hardness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm) Pick feed Pf (mm)
Tool diameter: DC (mm)
8 10 12 16 20
Low carbon steels S45C, S55C, etc. S45C, S55C, etc. C45, C55, etc. – 300 HB 80 – 180 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
High carbon steels SCM440, SCr415, etc.SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 60 – 140 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 60 – 120 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Stainless steels SUS304, SUS316, etc.SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 40 – 100 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Grey cast irons FC250, FC300, etc.FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 80 – 200 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Ductile cast irons FCD400, etc.FCD400, etc. 400-15S, etc. 150 – 250 HB 80 – 200 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Aluminium alloys Si < 13% 200 – 700 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Aluminium alloys Si ≥13% 100 – 300 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.25 x øDc
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.05 x øDc
Heat-resistant alloys Inconel 718, etc. 20 – 40 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.10 – 0.17 1 x øDc 0.05 x øDc
Hardened steel SKD61, SKT4, etc.SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 40 – 80 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.05 x øDc
Hardened steel SKD11, SKH, etc.SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 1 x øDc 0.05 x øDc
Slot milling (VEH, VEH: long flute, VEE: 3 flutes, VED/VEE: 4 flutes, VEE-A, VEE-I, VEE-R, VEE-C, VRB, VRC, VRD)
ISO Workpiece material Hard- ness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm)
Tool diameter: DC (mm)
6 8 10 12 16 20 25
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 80 – 180 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 60 – 140 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 60 – 120 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 40 – 100 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 80 – 200 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Ductile cast irons FCD400, etc.FCD400, etc. 400-15S, etc. 150 – 250 HB 80 – 200 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.10 0.5 x øDc
Aluminium alloys Si < 13% 200 – 700 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Aluminium alloys Si ≥13% 100 – 300 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Heat-resistant alloys Inconel 718, etc. 20 – 40 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.5 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 40 – 80 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.2 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.03 – 0.07 0.05 – 0.09 0.07 – 0.12 0.08 – 0.13 0.09 – 0.15 0.1 – 0.17 0.07 – 0.1 0.2 x øDc
High feed milling (VFX)
ISO Workpiece material Hardness Cutting speed Vc (m/min) ø10 ø12 ø16 ø20 Width of cut ae (mm)
Feed per tooth fz (mm/t) Depth of cut ap (mm) Feed per tooth fz (mm/t) Depth of cut ap (mm) Feed per tooth fz (mm/t) Depth of cut ap (mm) Feed per tooth fz (mm/t) Depth of cut ap (mm)
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 100 – 200 0.3 – 0.7 0.5 0.4 – 0.8 0.5 0.5 – 0.9 0.75 0.6 – 1 1 0.6 x øDc
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 80 – 180 0.2 – 0.6 0.5 0.3 – 0.7 0.5 0.4 – 0.8 0.75 0.5 – 0.9 1 0.6 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 80 – 160 0.2 – 0.5 0.4 0.2 – 0.5 0.4 0.3 – 0.6 0.5 0.3 – 0.6 0.75 0.6 x øDc
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 60 – 100 0.2 – 0.6 0.4 0.2 – 0.6 0.4 0.3 – 0.7 0.5 0.3 – 0.7 0.75 0.6 x øDc
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 100 – 220 0.3 – 0.7 0.5 0.4 – 0.8 0.75 0.5 – 0.9 0.75 0.6 – 1 1 0.6 x øDc
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 100 – 220 0.2 – 0.6 0.5 0.3 – 0.7 0.75 0.4 – 0.8 0.75 0.5 – 0.9 1 0.6 x øDc
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.2 – 0.5 0.4 0.2 – 0.5 0.4 0.2 – 0.6 0.5 0.2 – 0.6 0.5 0.25 x øDc
Heat-resistant alloys Inconel 718, etc. 20 – 40 0.1 – 0.3 0.3 0.1 – 0.3 0.3 0.1 – 0.3 0.4 0.1 – 0.3 0.4 0.25 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 40 – 80 0.2 – 0.4 0.3 0.2 – 0.4 0.3 0.3 – 0.5 0.4 0.3 – 0.5 0.4 0.45 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.1 – 0.2 0.2 0.1 – 0.2 0.2 0.1 – 0.3 0.3 0.1 – 0.3 0.3 0.25 x øDc
  • Please note that the feed per tooth should not exceed the maximum feed per tooth for each product.
Profiling for roughing (VBB-BM / BG / SG, VBD-BG, VBE-BGA)
ISO Workpiece material Hard- ness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm) Pick feed Pf (mm)
Tool diameter: DC (mm)
6 8 10 12 16 20 25
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 100 – 200 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 80 – 180 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 80 – 160 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 60 – 100 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 100 – 220 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 100 – 220 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Aluminium alloys Si < 13% 200 – 700 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Aluminium alloys Si ≥13% 100 – 300 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.4 x øDc
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.2 x øDc
Heat-resistant alloys Inconel 718, etc. 50 – 60 HRC 20 – 40 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.2 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 80 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.2 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.03 – 0.07 0.04 – 0.08 0.05 – 0.10 0.06 – 0.11 0.07 – 0.13 0.08 – 0.15 0.08 – 0.15 0.3 x øDc 0.2 x øDc
Profiling for semi-finishing and finishing (VBB-BM / BG / SG, VBD-BG, VBE-BGA)
ISO Workpiece material Hard- ness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Depth of cut ap (mm) Pick feed Pf (mm)
Tool diameter: DC (mm)
6 8 10 12 16 20 25
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 120 – 250 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 100 – 220 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 100 – 200 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 80 – 120 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 120 – 280 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 120 – 280 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Aluminium alloys Si < 13% 300 – 1000 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Aluminium alloys Si ≥13% 150 – 400 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.1 x øDc 0.15 x øDc
Titanium alloys Ti-6Al-4V, etc. 50 – 100 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.08 x øDc 0.1 x øDc
Heat-resistant alloys Inconel 718, etc. 50 – 60 HRC 30 – 50 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.08 x øDc 0.1 x øDc
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 50 – 100 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.08 x øDc 0.1 x øDc
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 30 – 80 0.04 – 0.09 0.06 – 0.11 0.07 – 0.12 0.08 – 0.13 0.09 – 0.16 0.1 – 0.18 0.1 – 0.18 0.08 x øDc 0.1 x øDc
Profiling (VBO, VBN)
ISO Workpiece material Hardness Cutting speed Vc (m/min) Feed per tooth: fz (mm/t) Cusp height (mm)
Tool diameter: DC (mm)
10 12 16
Low carbon steel S45C, S55C, etc. C45, C55, etc. – 300 HB 100 – 200 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
High carbon steel SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 80 – 180 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 80 – 160 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Stainless steel SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 60 – 100 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Grey cast iron FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 100 – 220 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Ductile cast iron FCD400, etc. 400-15S, etc. 150 – 250 HB 100 – 220 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Aluminium alloys Si < 13% 200 – 700 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Aluminium alloys Si ≥13% 100 – 300 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Titanium alloys Ti-6Al-4V, etc. 40 – 80 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Heat-resistant alloys Inconel718, etc. 50 – 60 HRC 20 – 40 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Hardened steel SKD61, SKT4, etc. X40CrMoV5-1, 55NiCrMoV6, etc. 40 – 80 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Hardened steel SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 60 0.05 – 0.1 0.06 – 0.11 0.07 – 0.13 0.1
Drilling (VCP, VDP)
ISO Workpiece material Hardness Cutting speed Vc (m/min) Feed: f (mm/rev)
VDP328 VDP412 VDP513 VDP646 VCP
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 40 – 80 0.04 – 0.08 0.05 – 0.10 0.05 – 0.10 0.06 – 0.12 0.06 – 0.12
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 30 – 50 0.04 – 0.08 0.05 – 0.10 0.05 – 0.10 0.06 – 0.12 0.06 – 0.12
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 20 – 30 0.04 – 0.08 0.05 – 0.10 0.05 – 0.10 0.06 – 0.12 0.06 – 0.12
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 15 – 25 0.04 – 0.08 0.05 – 0.10 0.05 – 0.10 0.06 – 0.12 0.06 – 0.12
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 60 – 100 0.05 – 0.09 0.07 – 0.12 0.07 – 0.12 0.12 – 0.18 0.12 – 0.18
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 60 – 100 0.04 – 0.08 0.05 – 0.10 0.05 – 0.10 0.10 – 0.15 0.10 – 0.15
Titanium alloys Ti-6Al-4V, etc. 15 – 25 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07
Heat-resistant alloys Inconel 718, etc. 10 – 20 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 15 – 25 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07 0.04 – 0.07
SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 10 – 20 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06 0.03 – 0.06
Counter boring (VGC)
ISO Workpiece material Hardness Cutting speed Vc (m/min) Feed per tooth fz(mm/t)
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 40 – 80 0.04 – 0.08
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 30 – 50 0.04 – 0.08
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 20 – 30 0.04 – 0.08
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 15 – 25 0.04 – 0.08
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 60 – 100 0.05 – 0.09
Ductile cast irons FCD400, etc. 400-15S, etc. 150 – 250 HB 60 – 100 0.04 – 0.08
Titanium alloys Ti-6Al-4V, etc. 15 – 25 0.04 – 0.07
Heat-resistant alloys Inconel 718, etc. 10 – 20 0.03 – 0.06
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 15 – 25 0.04 – 0.07
SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 10 – 20 0.03 – 0.06
  • When drilling, the step feed (woodpeckering feed) operation should be applied with the depth of 0.3 – 0.5 mm per step.
  • Apply the same cutting conditions as the VEE type head when conducting shoulder milling or slotting operations.
Chamfering and countersinking (VCA, VCW, VCR, VCP)
ISO Workpiece material Hardness Cutting speed Vc (m/min) Feed f (mm/rev)
Low carbon steels S45C, S55C, etc. C45, C55, etc. – 300 HB 60 – 100 0.06 – 0.12
High carbon steels SCM440, SCr415, etc. 42CrMo4, 15Cr3, etc. – 300 HB 50 – 80 0.06 – 0.12
Prehardened steel PX5, NAK80, etc. 30 – 40 HRC 40 – 70 0.06 – 0.12
Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 HB 30 – 50 0.06 – 0.12
Grey cast irons FC250, FC300, etc. 250, 300, etc. 150 – 250 HB 80 – 120 0.06 – 0.12
Ductile cast irons FC250, FC300, etc. 400-15S, etc. 150 – 250 HB 80 – 120 0.06 – 0.12
Aluminium alloys 100 – 200 0.08 – 0.15
Titanium alloys Ti-6Al-4V, etc. 30 – 50 0.05 – 0.1
Heat-resistant alloys Inconel 718, etc. 20 – 40 0.04 – 0.08
Hardened steel SKD61, SKT4, etc. X40CrMoV5 1, 55NiCrMoV6, etc. 40 – 50 HRC 30 – 50 0.05 – 0.1
SKD11, SKH, etc. X153CrMoV12, HS18-0-1, etc. 50 – 60 HRC 20 – 40 0.04 – 0.08
Slotting (VST, VTB)
ISO Workpiece material HardnessHB VST type VTB type
Cutting speed Vc (m/min) Feed per tooth fz (mm/t) Cutting speed Vc (m/min) Feed per tooth fz (mm/t)
Low carbon steelsS45C, S55C, etc.C45, C55, etc. – 300 80 – 180 0.05 – 0.15 80 – 180 0.08 – 0.18
High carbon steelsSCM440, SCr415, etc.42CrMo4, 15Cr3, etc. – 300 60 – 120 0.04 – 0.12 60 – 120 0.05 – 0.15
Stainless steelsSUS304, SUS316, etc.X5CrNi18-9, X5CrNiMo17-12-2, etc. – 200 50 – 120 0.04 – 0.12 50 – 120 0.05 – 0.15
Grey cast ironsFC250, FC300, etc.250, 300, etc. 150 – 250 100 – 200 0.05 – 0.15 100 – 200 0.08 – 0.18
Ductile cast ironsFCD400, etc.400-15S, etc. 150 – 250 100 – 200 0.04 – 0.12 100 – 200 0.05 – 0.15
Aluminium alloysSi < 13% 200 – 600 0.05 – 0.15 200 – 600 0.08 – 0.18
Aluminium alloysSi ≥13% 100 – 300 0.03 – 0.13 100 – 300 0.05 – 0.15
Titanium alloysTi-6Al-4V, etc. 40 – 60 0.04 – 0.12 40 – 60 0.05 – 0.15
Heat-resistant alloysInconel 718, etc. 15 – 35 0.02 – 0.1 15 – 35 0.02 – 0.1
TungForce-Rec
ISO Workpiece materials Hardness Priority Grades Cutting speed Vc (m/min) Feed per tooth fz (mm/t)
Low carbon steel (S15C / C15E4, SS400 / E275A, etc.) – 200 HB First choice AH3135 230 – 430 0.07 – 0.12
Carbon steel and alloy steel (S55C / C55, SCM440 / 42CrMo4, etc.) – 300 HB First choice AH3135 150 – 350 0.07 – 0.12
Prehardend steel (NAK80, PX5, etc.) 30 – 40 HRC First choice AH3135 100 – 230 0.07 – 0.12
Stainless steel (SUS304 / X5CrNi18-9, SUS316 / X5CrNiMo17-12-3, etc.) First choice AH3135 150 – 220 0.06 – 0.1
Grey cast iron (FC250 / 250, FC300 / 300, etc.) 150 – 250 HB First choice AH120 200 – 330 0.07 – 0.12
Ductile cast iron (FCD400, FCD600 / 600-3, etc.) 150 – 250 HB First choice AH120 150 – 240 0.07 – 0.12
Aluminium alloys (Si < 13%) First choice KS05F 650 – 1000 0.07 – 0.12
Aluminium alloys (Si ≥ 13%) First choice KS05F 100 – 230 0.04 – 0.12
Titanium alloys (Ti-6AI-4V, etc.) First choice AH130 40 – 90 0.04 – 0.1
Superalloys (Inconel718, etc.) First choice AH130 45 – 65 0.04 – 0.09
Hardened steel (SKD61 / X40CrMoV5-1, etc.) 40 – 50 HRC First choice AH120 45 – 70 0.04 – 0.08
(SKD11 / X153CrMoV12, etc.) 50 – 60 HRC AH120 40 – 65 0.04 – 0.06

For more information about this product, visit our online e-catalog or download the product report:

Search products

Online Shop

Online Shop

Online Shop
Find and order tools online

Learn more

e-Catalog

e-Catalog

e-Catalog
Download CAD drawings and 3D models

Learn more

Resources
