TungSix-Drill

Home / Products / Hole making / TungSix-Drill
product_Holemaking_TungSix-Drill

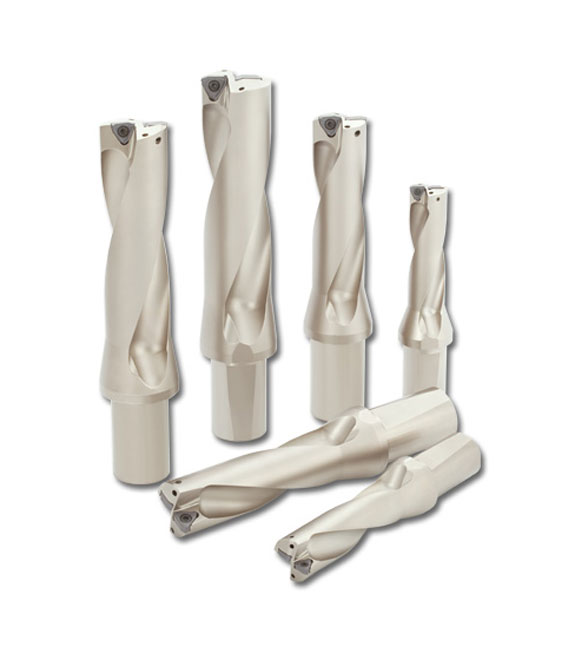

Indexable drill with economical 6 cutting edges insert

6 cornered insert with high performance that’s an extremely economical solution

Applications & Features

Applications

Drilling

Features

1. Double-sided insert with 6-cutting edges

• TungSixDrill is the first indexable drill in the world to adapt double-sided inserts with 6-cutting edges, reducing the insert consumption for the customers.

2. Low cutting force even with double sided insert

• The cutting forces are almost equal to competitors positive single sided inserts, especially at higher feed rates, thus complementing higher productivity.

3. Enhanced corner of central insert

• The central corner is strengthened by an obtuse angle relief thus increasing the corner strength and reliability.

4. TungDrillBig

Drill body with adjustable cartridge covers hole diameter ranges from: øDc: ø55 mm – ø80 mm, L/D = 2.5

  • Highly rigid body and optimized insert position

    Provides well balanced cutting forces and stable machining conditions for highly accurate hole making.

  • Adjustable tool diameter

    TungDrillBig features 5 drill body sizes that can accommodate a range of setting plates covering a diameter range from ø55 mm – ø80 mm.

  • Variety of design options

    TDX and TDS type cartridges can be affixed to the same body.

Inserts & Grades

Inserts
TungSix-Drill Inserts

WWMU-DJ / -DS

Inserts for Chamfering Ring

XHGX090700R-45A

Inserts for chamfering tool TDXCF

Main Grades

AH3135

  • P30 – P40 / M30 – M40

  • High fracture resistance

  • Suitable for machining steel and stainless steel under general cutting  conditions

AH9030



  • P15 – P35 / K10 – K25
  • High wear resistance
  • Suitable for drilling steel and cast iron at high speed

AH6030



  • M25 – M35 / S15 – S30
  • High fracture resistance
  • Suitable for drilling stainless steel and heat-resistant alloy under general cutting conditions

Drill bodies & Related tools

Drill bodies

TDS-F (ø20 – ø54 mm)

Cylindrical shank with flat cotter and flange

Drill bodies

TDB (ø55 – ø80 mm)

Diameter adjustable with setting plate

Cartridge set

TDSCA (ø55 – ø80 mm)

Cylindrical shank with flat cotter and flange

Chamfering Ring

TDXCF

Added on coaxial of the drill body

Practical examples

Example #1

Automotive Industry

Part: Connecting rod
Material: S55C / C55
Drill: TDS200F25-2, øDc = 20 mm
Insert: WWMU05X205R-DJ
Grade: AH9030
Cutting conditions: Vc = 200 (m/min)
f = 0.15 (mm/rev)
Vf = 477 (mm/min)
H = 30 (mm)
Coolant: Wet
Machine: Vertical M/C, BT40
Example #2

General Engineering

Part: Housing
Material: FCD450 / GGG45
Drill: TDS420F40-2, øDc = 42 mm
Insert: WWMU11X512R-DJ
Grade: AH9030
Cutting conditions: Vc = 120 (m/min)
f = 0.2 (mm/rev)
Vf = 180 (mm/min)
H = 80 (mm)
Coolant: Wet
Machine: NC lathe
Example #3

Automotive Industry

Part: Knuckle
Material: SCM440 / 42CrMo4
Drill: TDS500F40-3, øDc = 50 mm
Insert: WWMU13X512R-DJ
Grade: AH9030
Cutting conditions: Vc = 160 (m/min)
f = 0.11 (mm/rev)
Vf = 112 (mm/min)
H = 80, 65 (mm)
Coolant: Wet
Machine: Horizontal M/C, BT50

Standard cutting conditions

ISO Workpiece materials Priority Chip
breakers		 Grade Cutting speed Feed: f (mm/rev)
L/D = 2, 3 L/D = 4
DC (mm) DC (mm)
Vc (m/min) ø20 – ø27.5 ø28 – ø38 ø39 – ø54 ø20 – ø27 ø28 – ø38 ø39 – ø54
Low carbon steels (C < 0.3)
SS400, SM490, S25C, etc.
St42-1, St52-3, C25, etc.		 First choice DS AH6030 160 – 250 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04- 0.1 0.04 – 0.1 0.04 – 0.1
Wear resistance DJ AH9030 160 – 320 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1
Carbon steels (C > 0.3)
S45C, S55C, etc.
C45, C55, etc.		 First choice DJ AH9030 80 – 250 0.06 – 0.15 0.06 – 0.16 0.08 – 0.18 0.06 – 0.15 0.06 – 0.15 0.08 – 0.17
Fracture resistance DJ AH3135 80 – 250 0.04 – 0.12 0.04 – 0.13 0.04 – 0.15 0.04 – 0.12 0.04 – 0.13 0.04 – 0.15
Low alloy steels
SCM415, etc.		 First choice DS AH6030 160 – 250 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12
Wear resistance DJ AH9030 160 – 250 0.06 – 0.12 0.06 – 0.14 0.06 – 0.14 0.06 – 0.12 0.06 – 0.14 0.06 – 0.14
Alloy steels
SCM440, SCr420, etc.
42CrMo4, 20Cr4, etc.		 First choice DJ AH9030 80 – 200 0.06 – 0.15 0.06 – 0.16 0.08 – 0.18 0.06 – 0.15 0.06 – 0.15 0.08 – 0.17
Fracture resistance DJ AH3135 80 – 200 0.04 – 0.12 0.04 – 0.13 0.04 – 0.15 0.04 – 0.12 0.04 – 0.13 0.04 – 0.15
Stainless steels (Austenitic)
SUS304, SUS316, etc.
X5CrNi18-9, X5CrNiMo17-12-2, etc.		 First choice DS AH6030 100 – 200 0.04 – 0.1 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12
Fracture resistance DJ AH3135 100 – 200 0.04 – 0.1 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12
Stainless steels (Martensitic and ferritic)
SUS430, SUS416, etc.
X6Cr17, X20Cr13, etc.		 First choice DS AH6030 100 – 200 0.04 – 0.1 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12
Fracture resistance DJ AH3135 100 – 200 0.04 – 0.1 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12 0.04 – 0.12
Stainless steels (Precipitation hardening)
SUS630, etc.
X5CrNiCuNb16-4, etc.		 First choice DS AH6030 80 – 120 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1
Fracture resistance DJ AH3135 80 – 120 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1
Grey cast irons
FC250, etc.
GG25, etc.		 First choice DJ AH9030 80 – 250 0.06 – 0.15 0.06 – 0.18 0.08 – 0.2 0.06 – 0.15 0.06 – 0.16 0.08 – 0.18
Fracture resistance DJ AH3135 80 – 200 0.06 – 0.13 0.06 – 0.16 0.08 – 0.18 0.06 – 0.13 0.06 – 0.16 0.08 – 0.18
Ductile cast irons
FCD700, etc.
GGG70, etc.		 First choice DJ AH9030 80 – 200 0.06 – 0.15 0.06 – 0.18 0.08 – 0.2 0.06 – 0.15 0.06 – 0.16 0.08 – 0.18
Fracture resistance DJ AH3135 80 – 150 0.06 – 0.13 0.06 – 0.16 0.08 – 0.18 0.06 – 0.13 0.06 – 0.16 0.08 – 0.18
Aluminium alloy First choice DS AH6030 200 – 400 0.1 – 0.18 0.1 – 0.2 0.1 – 0.25 0.1 – 0.18 0.1 – 0.2 0.1 – 0.2
0.1 – 0.18 0.1 – 0.2 0.1 – 0.25 0.1 – 0.18 0.1 – 0.2 0.1 – 0.2
Heat resistant alloy
Inconel718, etc		 First choice DS AH6030 20 – 60 0.04 – 0.08 0.04 – 0.08 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1
Fracture resistance DJ AH3135 20 – 60 0.04 – 0.08 0.04 – 0.08 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1 0.04 – 0.1
Titanium alloys
Ti-6Al-4V, etc.		 First choice DS AH6030 40 – 120 0.06 – 0.1 0.06 – 0.12 0.06 – 0.14 0.06 – 0.14 0.06 – 0.14 0.06 – 0.14
Fracture resistance DJ AH3135 40 – 120 0.06 – 0.1 0.06 – 0.12 0.06 – 0.14 0.06 – 0.14 0.06 – 0.14 0.06 – 0.14
Hardened steel
Over 40HRC		 First choice DJ AH9030 50 – 100 0.04 – 0.08 0.04 – 0.08 0.04 – 0.1 0.04 – 0.08 0.04 – 0.08 0.04 – 0.08
Fracture resistance DJ AH3135 40 – 80 0.04 – 0.08 0.04 – 0.08 0.04 – 0.1 0.04 – 0.08 0.04 – 0.08 0.04 – 0.08

For more information about this product, visit our online e-catalog or download the product report:

e-Catalog

Metric  |  Imperial

TungDrillBig (Metric)  |  TungDrillBig (Imperial)
PDF
