TungCut

product_Turning_TungCut

Multi-functional system for diverse grooving needs

TungCut has a wide selection of standard items; inserts and toolholders are applicable for all grooving operations

TungModularSystem

TungFeed-Blade

Applications & Features

External groovingInternal groovingFace groovingParting-o

1. High clamping rigidity

For stable tool life and accuracy.

2. Benefits of TungTurn-Jet high pressure coolant supply

Drastically improved tool life.

3. Chip breaker for grooving and turning

Inserts & Grades

Inserts

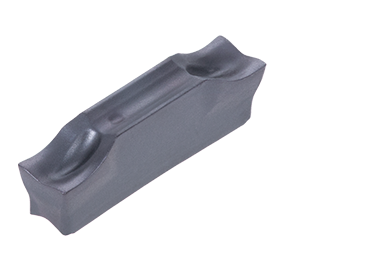

TUNGCUT Inserts for Grooving (Grooving width 1.4 – 8.0 mm)

  • Multi-functional system for diverse grooving needs
Main Grades

AH7025

  • P20 – P30 / M20 – M30 / S15 – S25
  • Excellent wear resistance and high rigidity
  • First choice for grooving of various materials

T9225

  • P15 – P25
  • First choice for roughing to medium cutting
  • High fracture resistance

BX360

  • Suitable for general machining of hardened steel

Toolholders

Grooving & Parting

TungCut Toolholders

Multi-functional system for diverse grooving needs

Other

TungCut Tool Blocks, Shanks

Multi-functional system for diverse grooving needs

Practical examples

Part: Ring encoder
Material: SUM22L
Toolholder: CTER2020-4T25
Insert: DGM4-030
Grade: AH7025
Cutting conditions: Vc = 180 (m/min)
f = 0.2 (mm/rev)
CW = 4 (mm/min)
CDX = 8 (mm)
Application: Parting off
Coolant: Wet
Part: Gear Housing
Material: SCM420 / 20Cr4
Toolholder: CTER2525-3T09
Insert: DTX3-030
Grade: AH725
Cutting conditions: Vc = 120 (m/min)
f = 0.15 (mm/rev)
CW = 3 (mm)
CDX = 7 (mm)
Application: Grooving
Coolant: Wet
Part: Valve
Material: SUS304 / X5CrNi18-9
Toolholder: CTIR25-3T05-D250
Insert: DTX3-030
Grade: AH7025
Cutting conditions: Vc = 80 (m/min)
f = 0.08 (mm/rev)
CW = 3 (mm)
CDX = 2.2 (mm)
Application: Grooving
Coolant: Wet

Standard cutting conditions
