Tungaloy is proud to launch a new digital tool designed to simplify and accelerate the design process for special grooving inserts: the Drawing Generator for Special Grooving Inserts.

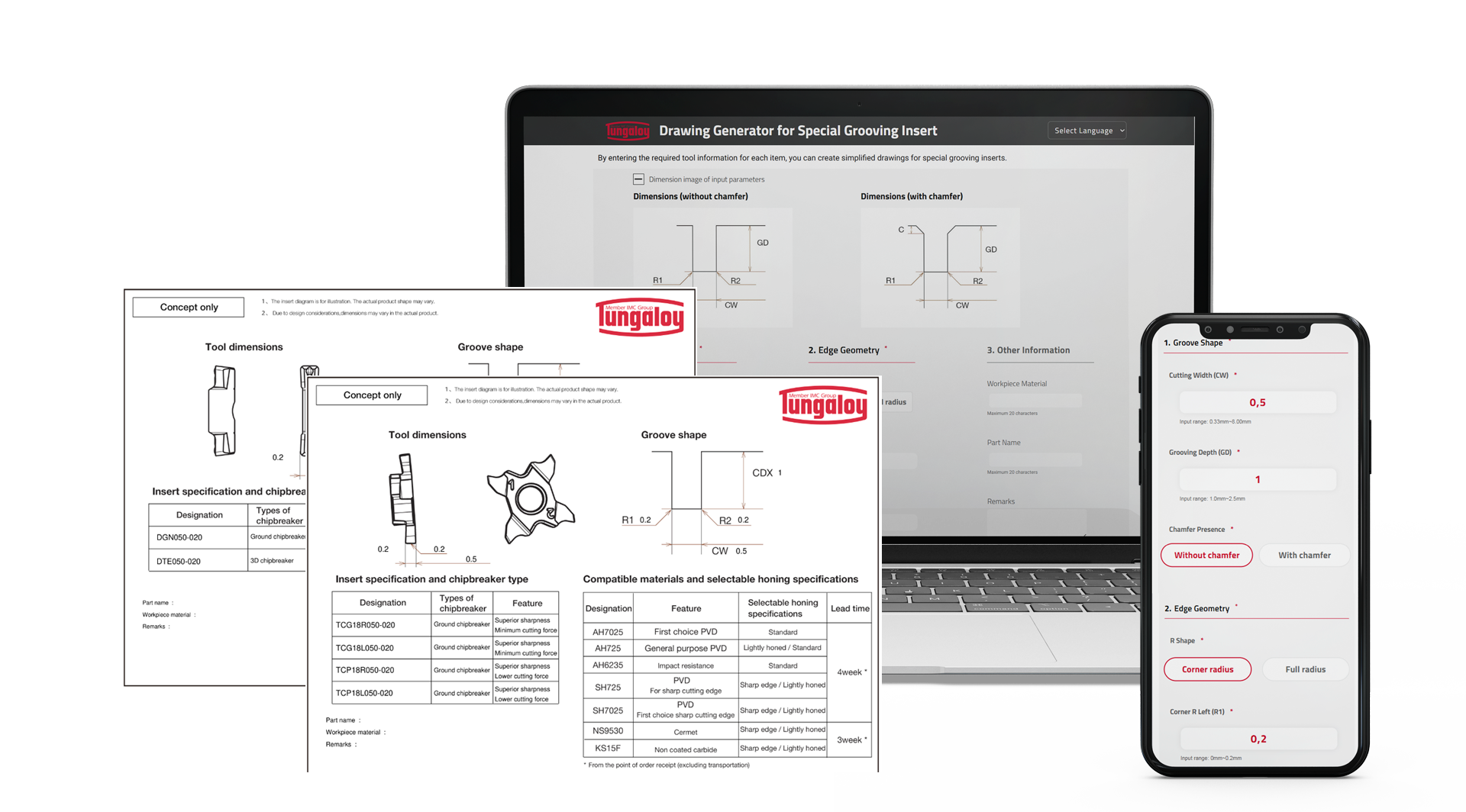

This intuitive platform allows users to quickly generate customized concept drawings by entering a few key parameters related to groove and insert geometry. Ideal for internal use and customer proposals, this tool makes special insert requests faster and easier than ever.
Key Input Parameters:
- Cutting width (CW)
- Grooving depth (GD)
- Corner radius values (R1 and R2)
- Chamfer presence
- Edge geometry (corner radius or full radius)
Output Features:
- Simplified groove and insert drawing
- Suggested insert types and chipbreaker options
- Recommended honing specifications and grades
- Responsive interface for use across all devices
Start using the Drawing Generator today and bring greater speed and clarity to your special tooling requests.
