Tung-Tri

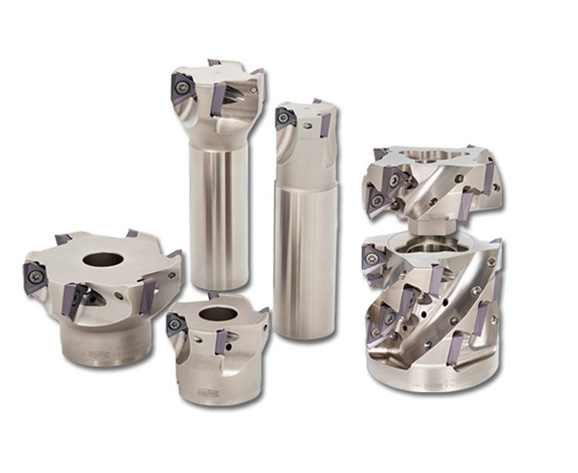

Shoulder milling cutter with cost-efficient inserts and outstanding chatter stability

Economical 3 cutting-edge insert with large rake angle on cutting edge reduces cutting force and provides excellent chip formation
Optimized flank face on insert and differential pitch on cutter prevent chatter in machining

Applications & Features

Applications

Shoulder milling Shoulder milling R Slotting Slotting R Side milling Pocketing Ramping Plunging Hole enlarging

Features

1. 3 cutting-edge insert

2.Drastically reduced cutting force

3. Excellent wall accuracy

• High wall accuracy due to helical cutting edge

Inserts & Grades

Inserts

TO*T

Maximum depth of cut
– TO*T04: 3.5 mm
– TO*T06: 6 mm
– TO*T10: 10 mm
– TO*T15: 15 mm
Economical 3 cutting-edge inserts with low cutting force

LEARN MORE

Main Grades

AH3135

High fracture resistance
Suitable for machining steel and stainless steel under general cutting conditions

LEARN MORE

AH3225

Good balance between wear and fracture resistance
Suitable for steel and stainless steel

LEARN MORE

AH8015

Good balance between wear and fracture resistance
First choice for machining heat-resistant alloy under general cutting conditions

LEARN MORE

Cutter bodies

Shank Type

EPA04/06/10/15 (ø8 – ø50 mm)

Cylindrical type holder for shoulder milling

LEARN MORE

Modular Type

HPA06-M (ø16 – ø32mm)

Modular head (TungFlex) for shoulder milling

LEARN MORE

Bore Type

TPA06/10/15 (ø32 – ø160 mm)

Bore type for shoulder milling

LEARN MORE

Bore Type

TLA series / C-EPA

Long depth of cut shoulder milling / TUNGCAP type

LEARN MORE

Practical examples

Example #1

General Engineering

Part:	Plate
Material:	SUS304 / X5CrNi18-9
Cutter:	EPA06R020M20.0-03N (ø20 mm, z = 3)
Insert:	TOMT060304PDER-MJ
Grade:	AH3135
Cutting conditions:	Vc = 125 (m/min) fz = 0.083 (mm/t) Vf = 600 (mm/min) ap = 1.5 (mm) ae = 9 (mm) Application: Face milling Coolant: Dry Machine: BT40

Example #2

General Engineering

Part:	Machine part
Material:	S45C / C45
Cutter:	EPA10R032M32.0-03N (ø32 mm, z = 3)
Insert:	TOMT100404PDER-MJ
Grade:	AH3135
Cutting conditions:	Vc = 150 (m/min) fz = 0.19 (mm/t) Vf = 836 (mm/min) ap = 1 (mm) ae = 5 (mm) Application: Shoulder milling Coolant: Wet (External supply) Machine: Turn-Mill center

Example #3

General Engineering

Part:	Base
Material:	S50C / C50
Cutter:	EPA10R032M32.0-03N (ø32 mm, z = 3)
Insert:	TOMT100404PDER-MJ
Grade:	AH3135
Cutting conditions:	Vc = 130 (m/min) fz = 0.1 (mm/t) Vf = 390 (mm/min) ap = 1.5 (mm) ae = 25 (mm) Application: Shoulder milling Coolant: External air Machine: Vertical M/C
Process:	,
Machine:

Standard cutting conditions

EPA04

Workpiece materials		Hardness	Grades	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)
Low carbon steel SS400, S15C , etc. E275A, C15E4, etc.		– 200 HB	AH3225	100 – 250	0.05 – 0.12
Carbon steel and alloy steel S55C, SCM440, etc. C55, 42CrMo4, etc.		– 300 HB	AH3225	100 – 230	0.05 – 0.12
Prehardened steel NAK80, PX5, etc.		30 – 40 HRC	AH3225	100 – 180	0.05 – 0.1
Stainless steel SUS304, etc. X5CrNi18-9, etc.		–	AH3225	90 – 200	0.05 – 0.1
Grey cast iron FC250, etc. 2 50, etc., GG25, etc.		150 – 250 HB	AH120	100 – 300	0.05 – 0.12
Ductile cast iron FCD450, etc. 450-10S, etc., GGG45, etc.		150 – 250 HB	AH120	100 – 200	0.05 – 0.12
Titanium alloys Ti-6AI-4V, etc.		–	AH3225	20 – 60	0.04 – 0.07
Heat-resistant alloys Inconel 718, etc.		–	AH8015	20 – 40	0.04 – 0.07
Hardened steel	SKD61, etc. X40CrMoV5-1, etc.	40 – 50 HRC	AH8015	50 – 150	0.04 – 0.07
Hardened steel	SKD11, etc. X153CrMoV12, etc.	50 – 60 HRC	AH8015	40 – 70	0.04 – 0.07

Remove excessive chip accumulation with an air blast.
For an operation when the depth of cut varies (ex.casting skin) or machining of workpiece materials with interrupted surface, the feed per tooth (fz) should be set to the lower recommended value shown in the above table.
Cutting conditions may be limited depending on machine power, workpiece rigidity, and spindle output. When the cutting width, depth, or overhang length is large, set Vc and fz to the lower recommended values and check the machine power and vibration.

T/E/HPA06, T/E/HPA10, T/EPA15

Workpiece materials	Hardness	Priority	Chipbreakers	Grades	T/E/HPA06		T/E/HPA10		T/EPA15
					Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)
					Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	MJ/AJ	NMJ
Low carbon steel SS400, S15C , etc. E275A, C15E4, etc.	– 200 HB	First choice	MJ/NMJ	AH3225	100 – 220	0.05 – 0.15	100 – 250	0.08 – 0.2	100 – 300	0.06 – 0.22	0.06 – 0.15
Low carbon steel SS400, S15C , etc. E275A, C15E4, etc.	– 200 HB	Wear resistance	MJ/NMJ	T3225	100 – 250	0.08 – 0.1	100 – 300	0.08 – 0.12	100 – 300	0.08 – 0.15	0.08 – 0.15
Carbon steel and alloy steel S55C, SCM440, etc. C55, 42CrMo4, etc.	– 300 HB	First choice	MJ/NMJ	AH3225	100 – 170	0.05 – 0.12	100 – 250	0.06 – 0.22	100 – 250	0.06 – 0.22	0.06 – 0.15
	– 300 HB	Wear resistance	MJ/NMJ	T3225	100 – 250	0.05 – 0.1	100 – 300	0.05 – 0.12	100 – 300	0.05 – 0.15	0.05 – 0.15
Prehardened steel and tool steel NAK80, PX5, SKD61, etc. X40CrMoV5-1, etc.	30 – 40 HRC	First choice	MJ/NMJ	AH3225	100 – 120	0.05 – 0.12	100 – 200	0.06 – 0.22	100 – 200	0.06 – 0.22	0.06 – 0.15
	30 – 40 HRC	Wear resistance	MJ/NMJ	T3225	100 – 250	0.05 – 0.1	100 – 300	0.05 – 0.12	100 – 300	0.05 – 0.15	0.05 – 0.15
Stainless steel SUS304, etc. X5CrNi18-9, etc.	–	First choice	MJ/NMJ	AH3135	80 – 150	0.05 – 0.15	80 – 200	0.08 – 0.2	90 – 200	0.08 – 0.2	0.08 – 0.15
Stainless steel SUS304, etc. X5CrNi18-9, etc.	–	Wear resistance	MJ/NMJ	T3225	90 – 200	0.05 – 0.1	90 – 250	0.05 – 0.12	90 – 250	0.05 – 0.15	0.05 – 0.15
Grey cast iron FC250, etc. 250, etc. GG25, etc.	150 – 250 HB	First choice	MJ/NMJ	AH120	100 – 200	0.05 – 0.15	100 – 250	0.05 – 0.15	140 – 250	0.08 – 0.25	0.08 – 0.15
Grey cast iron FC250, etc. 250, etc. GG25, etc.	150 – 250 HB	Wear resistance	MJ	T1215	150 – 250	0.05 – 0.12	150 – 300	0.08 – 0.2	200 – 300	0.08 – 0.18	–
Ductile cast iron FCD450, etc. 450-10S, etc. GGG45, etc.	150 – 250 HB	First choice	MJ/NMJ	AH120	80 – 150	0.05 – 0.15	80 – 200	0.08 – 0.2	110 – 200	0.08 – 0.25	0.08 – 0.15
Ductile cast iron FCD450, etc. 450-10S, etc. GGG45, etc.	150 – 250 HB	Wear resistance	MJ	T1215	100 – 200	0.05 – 0.12	130 – 250	0.05 – 0.15	150 – 250	0.08 – 0.18	–
Aluminium Si < 13%	40 – 50 HRC	First choice	AJ	KS05F	300 – 900	0.08 – 0.22	300 – 1000	0.08 – 0.22	300 – 1000	0.08 – 0.22	–
Aluminium Si ≥ 13%	50 – 60 HRC	First choice	AJ	KS05F	100 – 200	0.08 – 0.22	100 – 200	0.08 – 0.22	100 – 200	0.08 – 0.22	–
Titanium alloys Ti-6Al-4V, etc.	–	First choice	MJ/NMJ	AH3135	20 – 50	0.05 – 0.1	20 – 60	0.05 – 0.1	20 – 60	0.08 – 0.15	0.08 – 0.15
Heat-resistant alloys Inconel 718, etc.	–	First choice	MJ/NMJ	AH120	20 – 35	0.03 – 0.08	20 – 40	0.05 – 0.13	20 – 40	0.07 – 0.15	0.07 – 0.15

When you use the NMJ chipbreaker, please set up the feed less than 0.15 mm/t.
Remove excessive chip accumulation with an air blast.
For an operation when the depth of cut varies (ex.casting skin) or machining of workpiece materials with interrupted surface, the feed per tooth (fz) should be set to the lower recommended value shown in the above table.
Cutting conditions may be limited depending on machine power, workpiece rigidity, and spindle output. When the cutting width, depth, or overhang length is large, set Vc and fz to the lower recommended values and check the machine power and vibration.

TLA (Roughing type)

Workpiece materials	Hardness	Priority	Chipbreakers	Grades	TLA10		TLA15
					Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)
					Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)	Cutting speed Vc (m/min)	MJ/AJ	NMJ
Low carbon steel SS400, S15C , etc. E275A, C15E4, etc.	– 200 HB	First choice	MJ/NMJ	AH3225	100 – 250	0.08 – 0.2	100 – 300	0.06 – 0.22	0.06 – 0.15
Low carbon steel SS400, S15C , etc. E275A, C15E4, etc.	– 200 HB	Wear resistance	MJ/NMJ	T3225	100 – 300	0.08 – 0.12	100 – 300	0.08 – 0.15	0.08 – 0.15
Carbon steel and alloy steel S55C, SCM440, etc. C55, 42CrMo4, etc.	– 300 HB	First choice	MJ/NMJ	AH3225	100 – 250	0.06 – 0.22	100 – 250	0.06 – 0.22	0.06 – 0.15
	– 300 HB	Wear resistance	MJ/NMJ	T3225	100 – 300	0.05 – 0.12	100 – 300	0.05 – 0.15	0.05 – 0.15
Prehardened steel and tool steel NAK80, PX5, SKD61, etc. X40CrMoV5-1, etc.	30 – 40 HRC	First choice	MJ/NMJ	AH3225	100 – 200	0.06 – 0.22	100 – 200	0.06 – 0.22	0.06 – 0.15
	30 – 40 HRC	Wear resistance	MJ/NMJ	T3225	100 – 300	0.05 – 0.12	100 – 300	0.05 – 0.15	0.05 – 0.15
Stainless steel SUS304, etc. X5CrNi18-9, etc.	–	First choice	MJ/NMJ	AH3135	80 – 200	0.08 – 0.2	90 – 200	0.08 – 0.2	0.08 – 0.15
Stainless steel SUS304, etc. X5CrNi18-9, etc.	–	Wear resistance	MJ/NMJ	T3225	90 – 250	0.05 – 0.12	90 – 250	0.05 – 0.15	0.05 – 0.15
Grey cast iron FC250, etc. 250, etc. GG25, etc.	150 – 250 HB	First choice	MJ/NMJ	AH120	100 – 250	0.05 – 0.15	140 – 250	0.08 – 0.25	0.08 – 0.15
Grey cast iron FC250, etc. 250, etc. GG25, etc.	150 – 250 HB	Wear resistance	MJ	T1215	150 – 300	0.08 – 0.2	200 – 300	0.08 – 0.18	–
Ductile cast iron FCD450, etc. 450-10S, etc. GGG45, etc.	150 – 250 HB	First choice	MJ/NMJ	AH120	80 – 200	0.08 – 0.2	110 – 200	0.08 – 0.25	0.08 – 0.15
Ductile cast iron FCD450, etc. 450-10S, etc. GGG45, etc.	150 – 250 HB	Wear resistance	MJ	T1215	130 – 250	0.05 – 0.15	150 – 250	0.08 – 0.18	–
Aluminium Si < 13%	40 – 50 HRC	First choice	AJ	KS05F	300 – 1000	0.08 – 0.22	300 – 1000	0.08 – 0.22	–
Aluminium Si ≥ 13%	50 – 60 HRC	First choice	AJ	KS05F	100 – 200	0.08 – 0.22	100 – 200	0.08 – 0.22	–
Titanium alloys Ti-6Al-4V, etc.	–	First choice	MJ/NMJ	AH3135	20 – 60	0.05 – 0.1	20 – 60	0.08 – 0.15	0.08 – 0.15
Heat-resistant alloys Inconel 718, etc.	–	First choice	MJ/NMJ	AH120	20 – 40	0.05 – 0.13	20 – 40	0.07 – 0.15	0.07 – 0.15

When using NMJ chipbreaker, please set up the feed not to exceed 0.15 mm/t.

For more information about this product, visit our online e-catalog or download the product report:

e-Catalog

Metric | Imperial

PDF

Metric

Main product report_No. 421-G

Imperial

Main product report_No. 421-US
- Expansion High precision E-class insert 、AJ chip breaker for non-ferrous materials_No. 421S1-US
