Iwaki, Japan – August 2026 – Tungaloy Corporation (President: Satoshi Kinoshita, Head Office: Iwaki City, Fukushima Prefecture) announces the expansion of its TetraMini-Cut series, a high-rigidity, four-cutting-edge multifunctional grooving tool series, with the addition of two new grades for non-ferrous metal machining: DS2005, offering excellent adhesion and wear resistance, and KS05F, an uncoated carbide grade.
Challenges and Trends
In non-ferrous metal machining, materials such as aluminum and resin are widely used across a range of fields, including automotive part manufacturing. However, these materials tend to cause built-up edge, leading to surface quality degradation and dimensional inaccuracies during machining. Additionally, chips tend to adhere and become entangled, making smooth cutting and tool-life maintenance difficult and increasing the need for more efficient machining solutions. To respond to these market needs, developing grades with superior resistance to built-up edge and wear has become an urgent priority.
Product Overview
TetraMini-Cut is Tungaloy’s high-performance grooving and multifunctional tooling system. It covers groove widths from 0.33 mm to 3.18 mm and groove depths up to 3.5 mm, making it ideal for shallow grooving applications ranging from small precision-component machining to general turning operations. Equipped with through-coolant holders and low cutting-force chipbreaker geometries, TetraMini-Cut delivers high productivity and excellent chip control. A wide range of grades, including CBN, is available to cover various workpiece materials. The same holder can accommodate inserts for external grooving/parting-off, face grooving, and threading operations, providing excellent versatility.
Benefits and Features

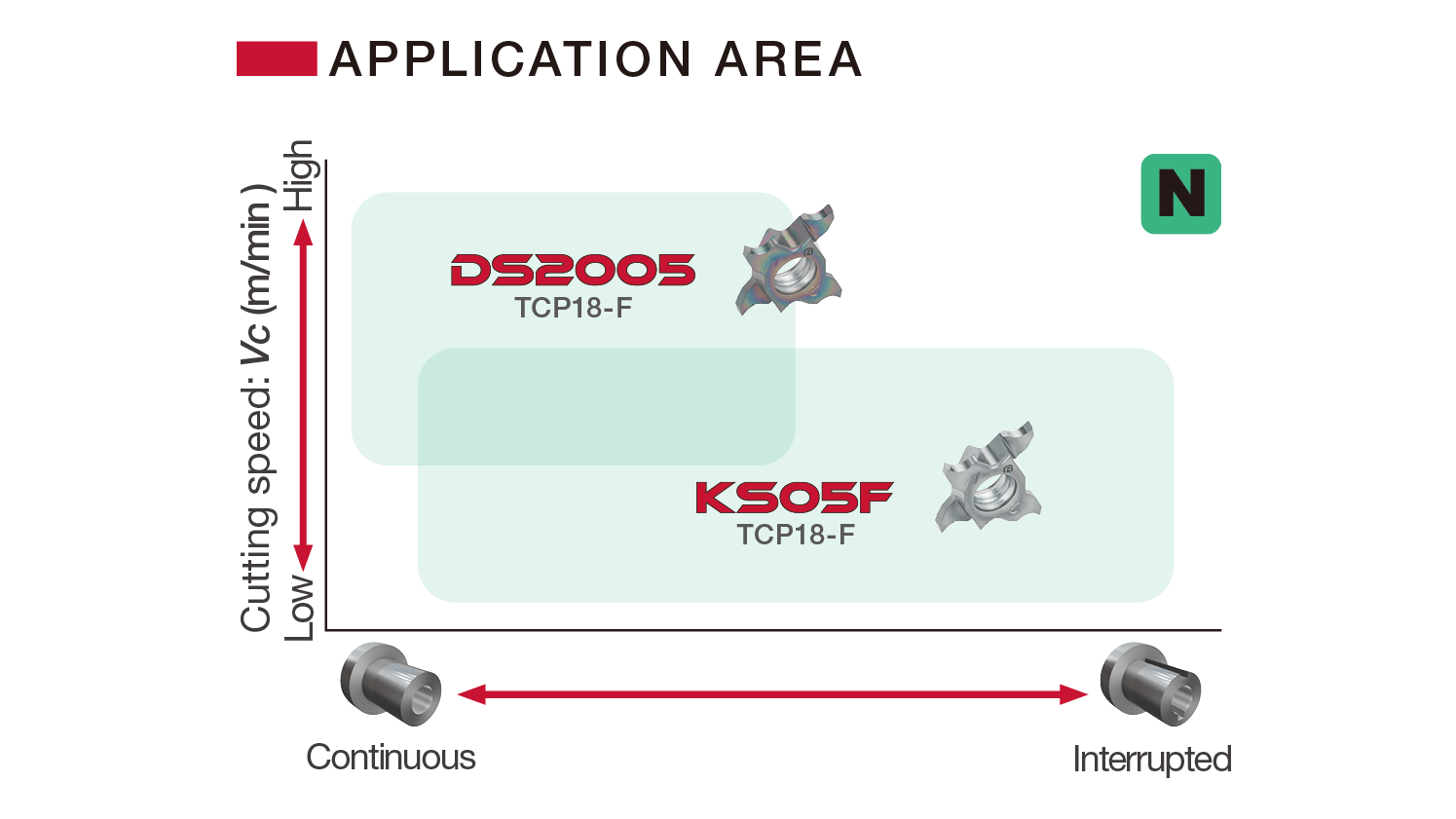

Feature 1: Expansion of grades DS2005 and KS05F specialized for non-ferrous metal machining

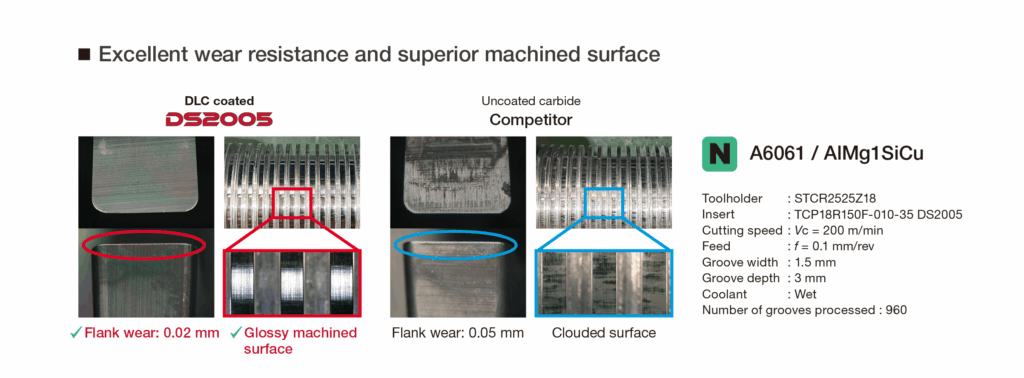

- DS2005 utilizes a DLC coating, offering superior adhesion resistance and wear resistance compared to uncoated grades, resulting in a stable, high-quality surface finish.
- KS05F is an uncoated carbide grade with excellent anti-welding properties, making it versatile for various non-ferrous metal machining applications.
The expansion of these grades broadens the range of cutting conditions for non-ferrous metal processing, allowing for more efficient machining.
Feature 2: Stable machining enabled by a unique high-rigidity, high-precision clamping system
- The three-point clamp structure improves the positional accuracy of the cutting edge, enabling stable cutting operations.
- The toolholder is designed to protect unused cutting edges from the unstable chip formation inherent in non-ferrous metals while achieving full utilization of all four edges, thus extending tool life.

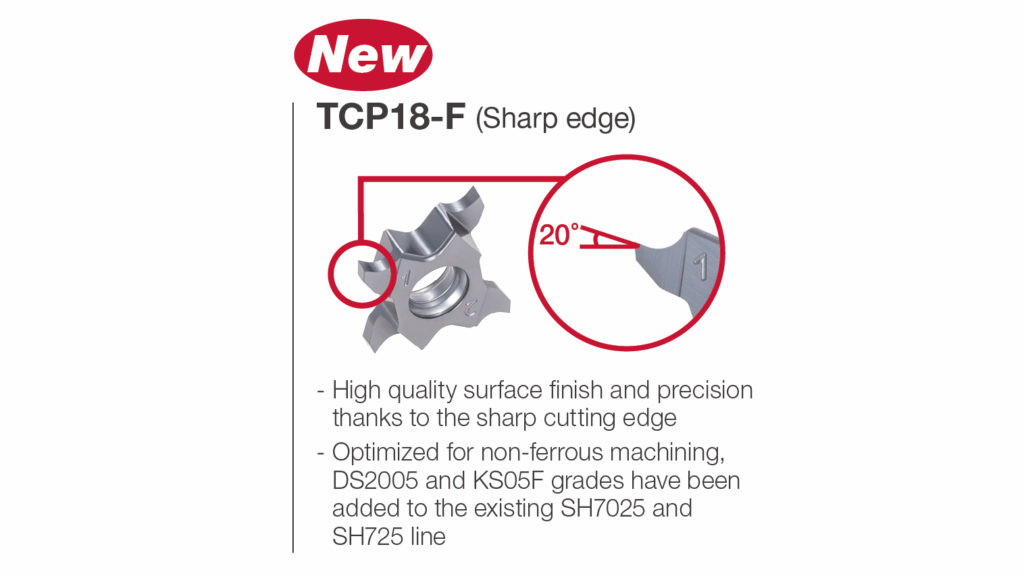

- When combined with TCP18-F inserts, TetraMini-Cut provides a sharp cutting edge and low cutting resistance, enhancing machining efficiency and product quality.
