Y-Pro Series

Home / Products / Turning / Y-Pro Series
t_369_t_01

Insert with 25° corner angle for profiling

Y-Pro Series expands the machining range of taper cutting, undercutting, and “V” grooving applications

Applications & Features

Applications

External turningInternal turning

Features

1. A new narrow corner angle insert that expands machining possibilities.



2. Suitable for a wide range of machining applications

Spherical profiling

Face profiling

“ V ” grooving

External undercutting

Internal undercutting

Internal profiling

Inserts & Grades

Inserts

YCGT

  • Positive relief angle, G class, 25 deg corner angle insert

YWMT

  • Positive relief angle, M class, 25 deg corner angle insert

YNMG

  • Negative relief angle, M class, 25 deg corner angle insert
Main Grades

SH7025

  • The latest grade with sharp cutting edge designed for small part machining.
  • A combination of a columnar-structured TiCN coating and multilayered TiAlN coating provides superior surface quality and process security.

T9215

  • Well-balanced between wear and chipping resistance
  • First choice for steel
  • High versatility for a wide range of applications

T9225

  • First choice for roughing to medium cutting
  • High fracture resistance

T9235

  • High fracture resistance in heavy interrupted cutting

T6215

  • High wear resistance at medium to high speed machining
  • First choice CVD grade for stainless steel cutting

AH6225

  • First choice PVD grade for stainless steel machining
  • A versatile PVD grade for excellent performance in a wide range of stainless steel applications

AH8015

  • Good balance between wear and fracture resistance
  • First choice for machining heat-resistant alloy under general cutting conditions
  • First choice for threading

NS9530

  • High fracture resistance
  • Suitable for fi nishing to medium cutting of steel

GT9530

  • High wear resistance
  • Excellent surface quality in fi nishing

Toolholders

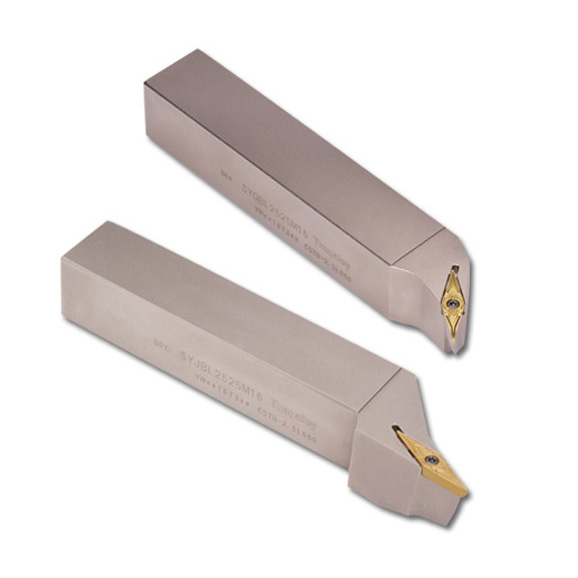

External turning

Y-Pro Series Toolholders

25° corner angle for profiling

Internal turning

Y-Pro Series Toolholders

25° corner angle for profiling

Practical examples

Example #1
Part: Fitting
Material: SUS304 / X5CrNi18-10
Tolholder: JSYJ2CR1212X10
Insert: YCGT100202MF-JS
Grade: SH7025
Cutting conditions: Vc = 85 m/min
f = 0.03 mm/rev
ap = 0.075 mm
Application: External turning
Coolant: Wet

Traditionally, machining the thread-end taper requires a dedicated inser t shape. YCGT performs this operation while delivering 1.75 times longer tool life.

Example #2
Part: Shaft
Material: S45C / C45
Tolholder: QC12-JSYJ2CR10-CHP
Insert: YCGT100202MF-JS
Grade: SH7025
Cutting conditions: Vc = 70 m/min
f = 0.02 mm/rev
ap = 0.3 mm
Application: External turning
Coolant: Wet

Conventionally, two different tools were required for external turning and profiling.
YCGT integrates both functions into a single tool.

Example #3
Part: Pulley
Material: SCM415
Tolholder: AVVNN2525M16-A
Insert: YNMG160404-ZM
Grade: GT9530
Cutting conditions: Vc = 250 m/min
f = 0.5 mm/rev
ap = 0.1 – 0.2 mm
Application: External turning
Coolant: Wet

Chip control was drastically inproved against conventional grooving tool. 1.25 times longer tool life achieved.

Example #4
Part: Automotive part
Material: SACM645
Tolholder: A16Q-SYUBR11-D200
Insert: YWMT11T204-ZF
Grade: T9215
Cutting conditions: Vc = 100 m/min
f = 0.5 mm/rev
ap = 0.2 mm
Application: Internal turning
Coolant: Wet

Chip control and surface finish are improved drastically when internal turning.

Standard cutting conditions

For positive insert
ISO Operation Chipbreaker Grades Depth of cut
ap (mm)		 Feed
f (mm/rev)		 Cutting speed: Vc (m/min)
Low carbon steels,
alloy steels		 Medium carbon
steels, alloy steels

High carbon steels,
alloy steels
Precison finishing JS SH7025 0.5 – 3 0.02 – 0.2 10 – 200 10 – 200 10 – 200
Finishing ZF GT9530 0.2 – 1.5 0.05 – 0.25 150 – 300 150 – 300 150 – 300
NS9530 0.2 – 1.5 0.05 – 0.25 150 – 300 150 – 300 150 – 300
T9215 0.2 – 1.5 0.05 – 0.25 120 – 350 100 – 350 80 – 250
T9225 0.2 – 1.5 0.05 – 0.25 120 – 300 120 – 300 100 – 250
T9235 0.2 – 1.5 0.05 – 0.25 50 – 200 50 – 200 50 – 150
Finishing to
medium		 ZM GT9530 0.5 – 2 0.05 – 0.3 150 – 300 150 – 300 150 – 300
NS9530 0.5 – 2 0.05 – 0.3 150 – 300 150 – 300 150 – 300
T9215 0.5 – 2 0.05 – 0.3 120 – 350 100 – 350 80 – 250
T9225 0.5 – 2 0.05 – 0.3 120 – 300 120 – 300 100 – 250
T9235 0.5 – 2 0.05 – 0.3 50 – 200 50 – 200 50 – 150
Stainless steels
Precison finishing JS SH7025 0.5 – 3 0.02 -0.2 10 – 200 10 – 200 10 – 200
Finishing to
medium		 ZF T6215 0.2 – 1.5 0.05 – 0.25 140 – 240 160 – 280 80 – 150
AH6225 0.2 – 1.5 0.05 – 0.25 90 – 200 110 – 240 60 – 110
ZM T6215 0.5 – 2 0.05 – 0.3 140 – 240 160 – 280 80 – 150
AH6225 0.5 – 2 0.05 – 0.3 90 – 200 110 – 240 60 – 110
Cast iron
Finishing to
medium		 ZF T9215 0.2 – 1.5 0.05 -0.25 140 – 500 140 – 500 140 – 500
T9225 0.2 – 1.5 0.05 – 0.25 140 – 500 140 – 500 140 – 500
ZM T9215 0.5 – 2 0.05 – 0.3 140 – 500 140 – 500 140 – 500
T9225 0.5 – 2 0.05 – 0.3 140 – 500 140 – 500 140 – 500
Heat-resistant alloys
Finishing to
medium		 ZF AH8015 0.2 – 1.5 0.05 -0.25 20 – 80 20 – 80 20 – 80
ZM AH8015 0.5 – 2 0.05 -0.3 20 – 80 20 – 80 20 – 80
For negative insert
ISO Operation Chipbreaker Grades Depth of cut
ap (mm)		 Feed
f (mm/rev)		 Cutting speed: Vc (m/min)
Low carbon steels,
alloy steels		 Medium carbon
steels, alloy steels

High carbon steels,
alloy steels
Finishing ZF GT9530 0.2 – 1.5 0.03 – 0.2 150 – 300 150 – 300 150 – 300
NS9530 0.2 – 1.5 0.03 – 0.2 150 – 300 150 – 300 150 – 300
T9215 0.2 – 1.5 0.03 – 0.2 120 – 350 100 – 350 80 – 250
T9225 0.2 – 1.5 0.03 – 0.2 120 – 300 120 – 300 100 – 250
T9235 0.2 – 1.5 0.03 – 0.2 50 – 200 50 – 200 50 – 150
Finishing to
medium		 ZM GT9530 0.7 – 2 0.15 – 0.4 150 – 300 150 – 300 150 – 300
NS9530 0.7 – 2 0.15 – 0.4 150 – 300 150 – 300 150 – 300
T9215 0.7 – 2 0.15 – 0.4 120 – 350 100 – 350 80 – 250
T9225 0.7 – 2 0.15 – 0.4 120 – 300 120 – 300 100 – 250
T9235 0.7 – 2 0.15 – 0.4 50 – 200 50 – 200 50 – 150
Stainless steels
Finishing ZF T6215 0.2 – 1.5 0.03 – 0.2 140 – 240 160 – 280 80 – 150
AH6225 0.2 – 1.5 0.03 – 0.2 90 – 200 110 – 240 60 – 110
Finishing to
medium		 ZM T6215 0.7 – 2 0.15 – 0.4 140 – 240 160 – 280 80 – 150
AH6225 0.7 – 2 0.15 – 0.4 90 – 200 110 – 240 60 – 110
Cast iron
Finishing ZF T9215 0.2 – 1.5 0.03 – 0.2 140 – 500 140 – 500 140 – 500
T9225 0.2 – 1.5 0.03 – 0.2 140 – 500 140 – 500 140 – 500
Finishing to
medium		 ZM T9215 0.7 – 2 0.15 – 0.4 140 – 500 140 – 500 140 – 500
T9225 0.7 – 2 0.15 – 0.4 140 – 500 140 – 500 140 – 500
Heat-resistant alloys
Finishing ZF AH8015 0.2 – 1.5 0.03 – 0.2 20 – 80 20 – 80 20 – 80
Finishing to medium ZM AH8015 0.7 – 2 0.15 – 0.4 20 – 80 20 – 80 20 – 80

For more information about this product, visit our online e-catalog or download the product report:

e-Catalog

Metric  |  Imperial

PDF
