Indexable endmill for high-precision finishing

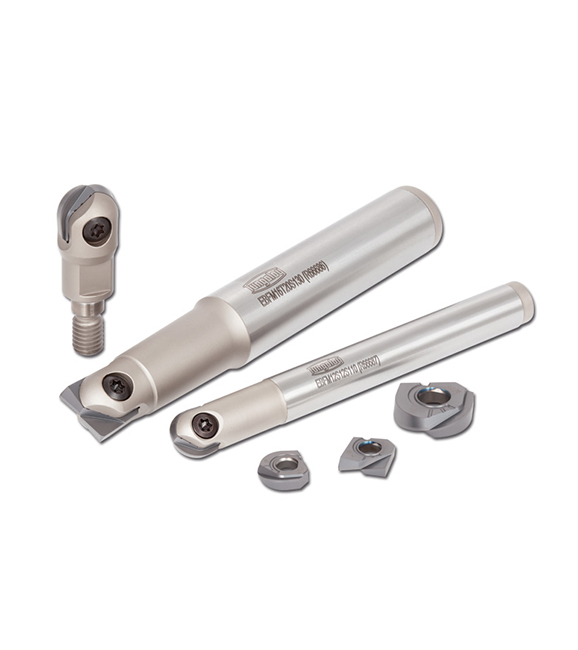

Indexable end mill series with accurate insert repeatability thanks to its unique asymmetric V profile – 2 insert profiles available: ball nose and square with radii – Tool holders are available in monoblock shank and modular style

Applications & Features

Applications

ProfilingSlottingSlotting RShoulder millingShoulder milling RPocketingRampingPlungingHole enlargingFace milling

Features

1. Excellent surface finish and stable machining due to secure clamping and minimum run-out

– Secure clamping mechanism


– Unique coolant delivery system


– Two insert varieties

Inserts & Grades

Inserts

ZFB-MJ

  • Ball nose type insert for finishing
  • Radius 4 – 16 mm

ZFR-MJ

  • Radius type insert for finishing
  • Corner radius 0.5, 1.0, 1.5 mm

ZFCBM-MM

  • Barrel type insert for semi-finishing to finishing
  • Corner radius 1.5, 2.0, 2.5, 3.0, 3.5 mm
Grades

AH710



P05 – P15 / K05 – K15 / H05 – H15

  • High wear resistance
  • Suitable for finishing cast iron and high-hardened steel

AH725

  • Good balance between wear and chipping resistance
  • Suitable for machining steel and stainless steel under general cutting conditions

CH315

  • Unique grade with high wear resistance
  • Suitable for semi-finishing to finishing applications

Cutter bodies

Shank Type

EBFM (ø8- ø32 mm)

Cylindrical type holders for finishing profile milling

Modular Type

HBFM (ø10- ø32 mm)

Modular type holders for finishing profile milling

Practical examples

Example #1

Die and Mold Industry

Part: Mold part
Material: SKD11
Cutter: EBFM20S20C220
Insert: ZFBM200R00-MJ
Grade: AH725
Cutting conditions: Vc = 350 (m/min)
fz = 0.15 (mm/t)
ap = 0.2 (mm)
pf = 0.3 (mm)
Application: Profiling
Coolant: Dry
Machine: M/C, BT50
Exemple #2

Die and Mold Industry

Part: Mold part
Material: STAVAX
Cutter: EBFM12S12S110
Insert: ZFBM120R00-MJ
Grade: AH725
Cutting conditions: Vc = 360 (m/min)
fz = 0.09 (mm/t)
ap = 0.5 (mm)
pf = 1.0 (mm)
Application: Profiling
Coolant: Internal supply, Wet
Machine: M/C, BT40

Standard cutting conditions

For more information about this product, visit our online e-catalog or download the product report:

e-Catalog

Metric  |  Imperial

PDF
