Drawing Generator for TungMeister Special T-Slot Head

By entering the required tool information for each item, you can create a simplified drawing of the TungMeister Special T-Slot Head.

Product Line:TungMeister

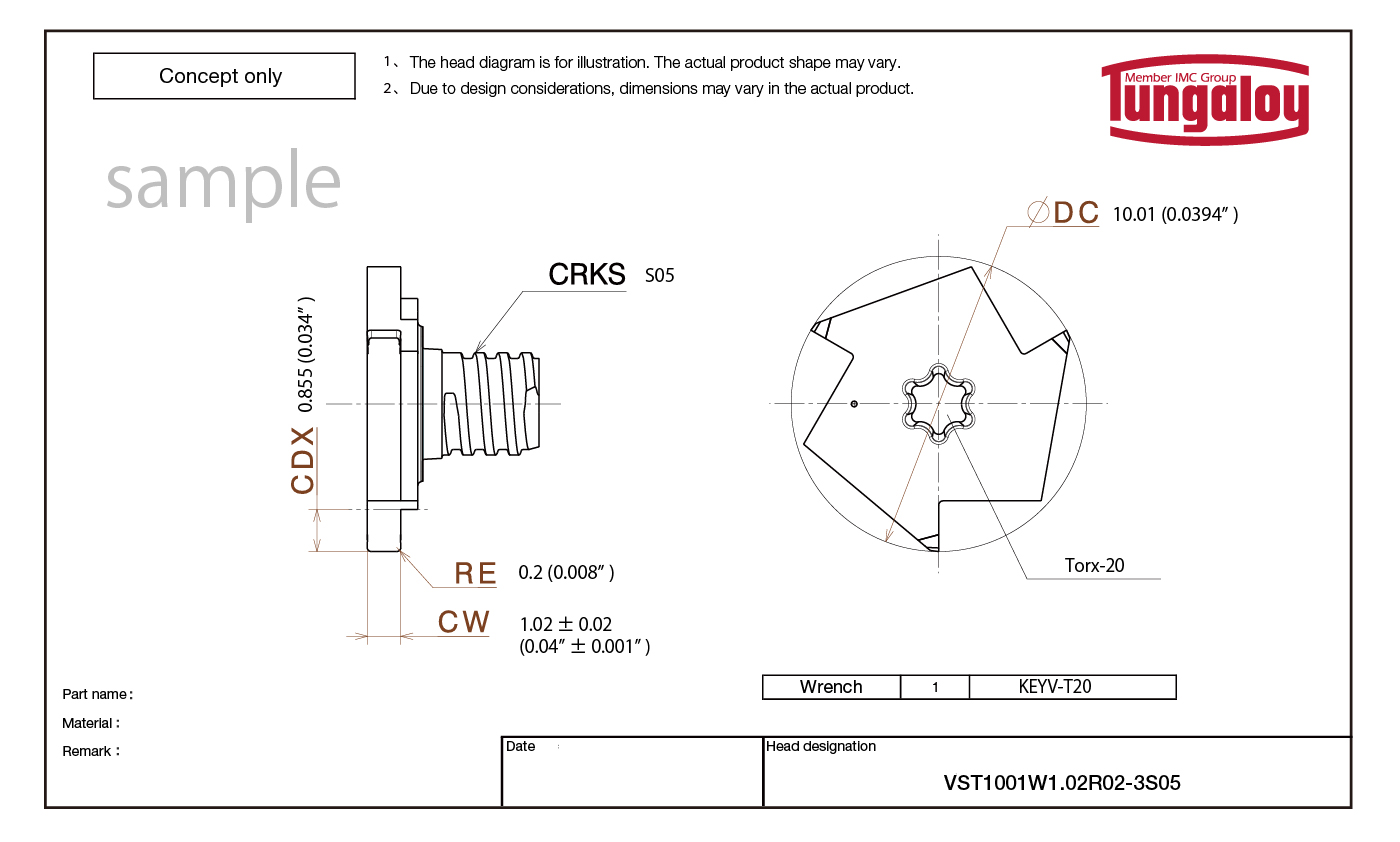

Sample

1.Tool Dimensions*

Cutting width*

Input range : 0.039"~0.618"

Tool diameter*

Input range : 0.394"~1.393"

Maximum grooving depth (CDX)

After entering "Cutting width" and "Tool diameter" the CDX will automatically populate based on the input values upon confirmation.

2.Edge Geometry*

The number of flutes*

6flute (Staggered) : 3 Effective tooth

R shape*

Full radius can be selected for groove widths of 0.059" or more.
Full radius can only select corner R.

Corner radius*

3.Other Information

Workpiece material


20 characters maximum

Part name


20 characters maximum

Remark


50 characters maximum
*Mandatory fields Input Units : Inch
